SR-400A Mods
Contributed by Chuck KA6UUP

In the late eighties, I bought a SR 400 A with HA 20 out of the Ham Trader Yellow Sheets. (Remember them?) When I received it I discovered it had been thru the hands of Bob Orwin.(W9YKA. I think. Can't read his handwriting) in 1986. Formerly an engineer with Hallicrafters.

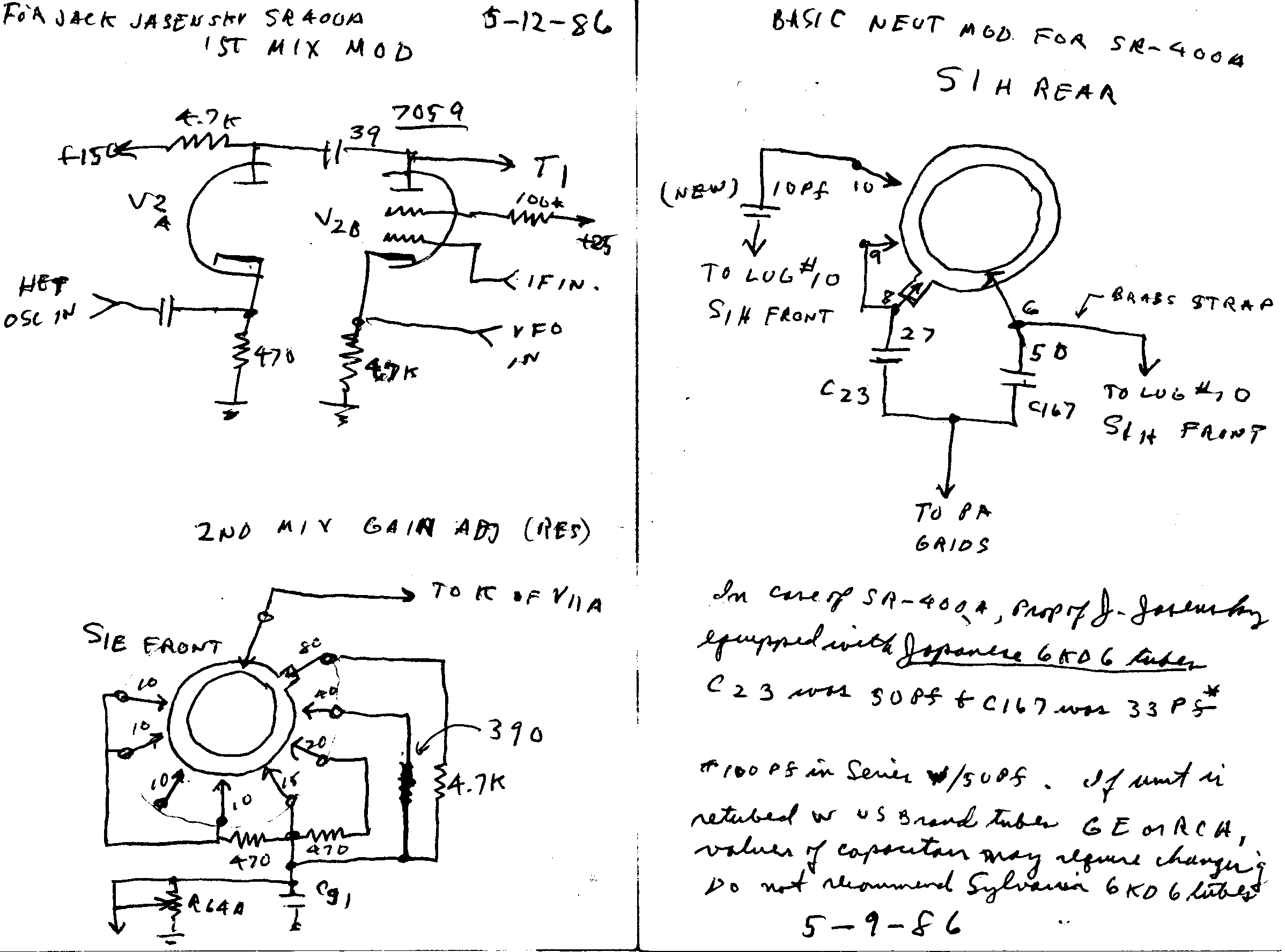

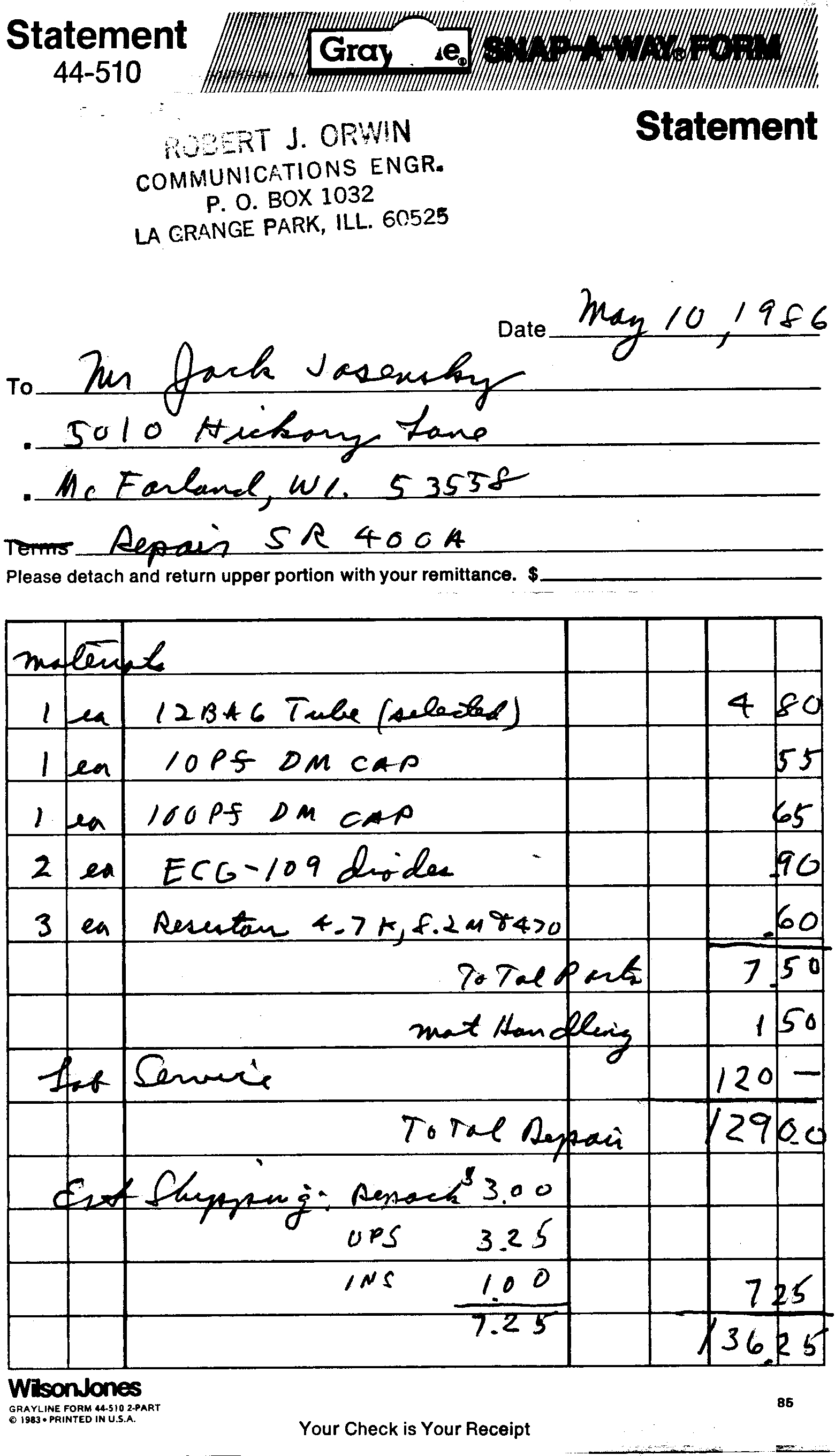

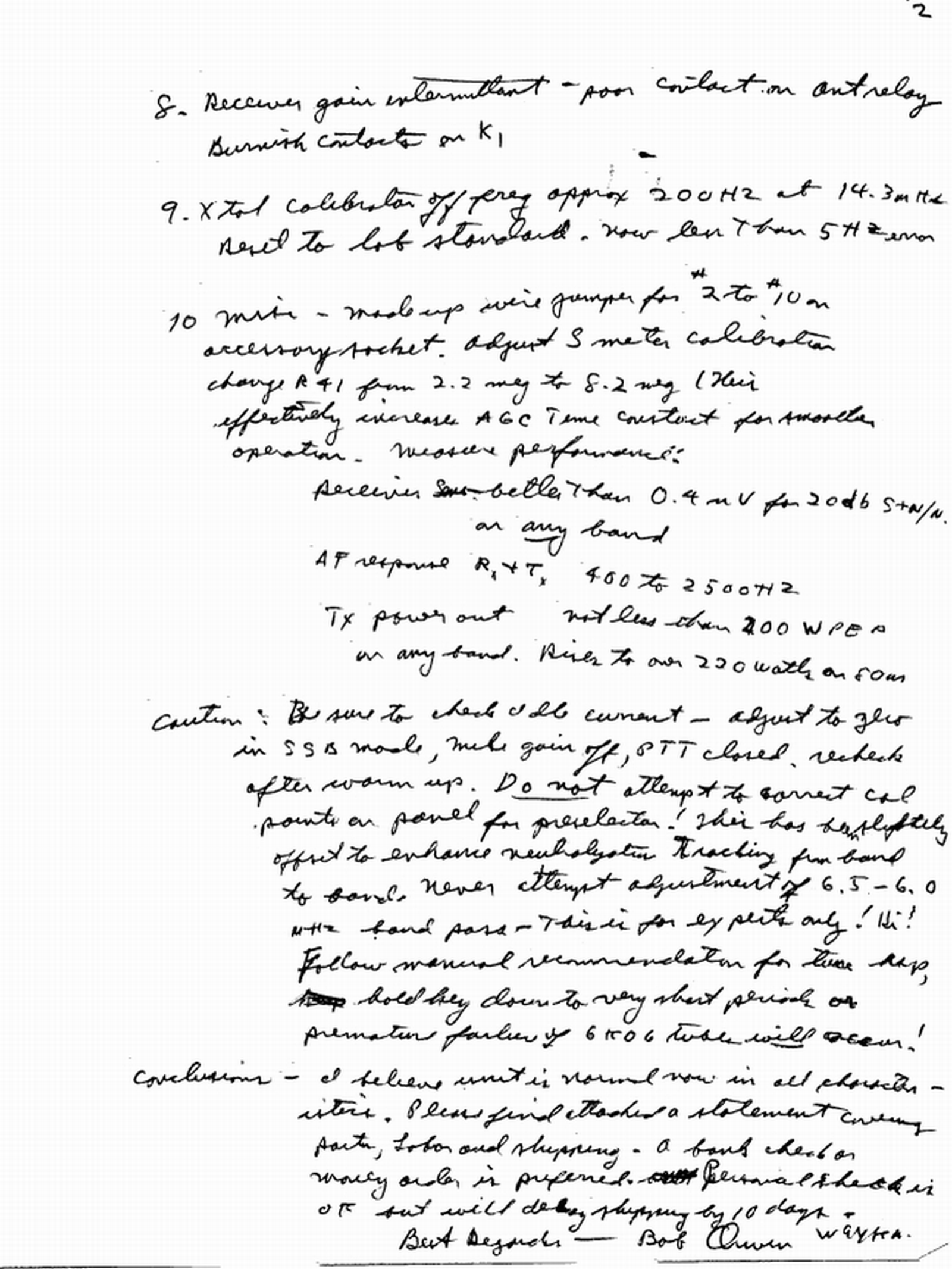

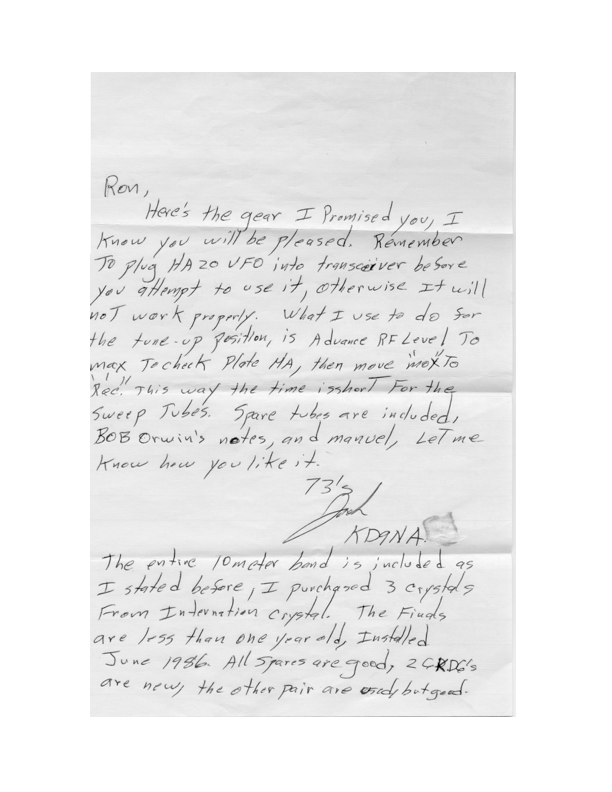

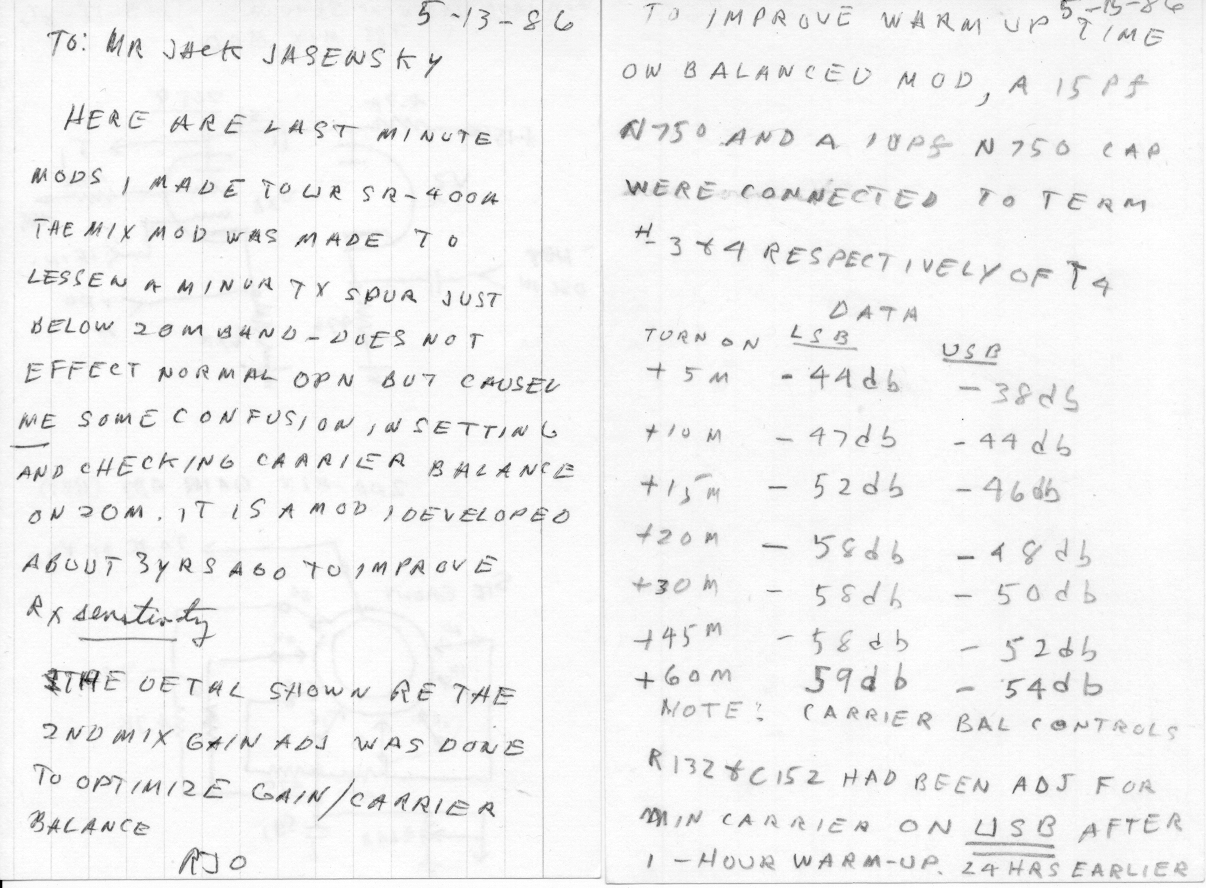

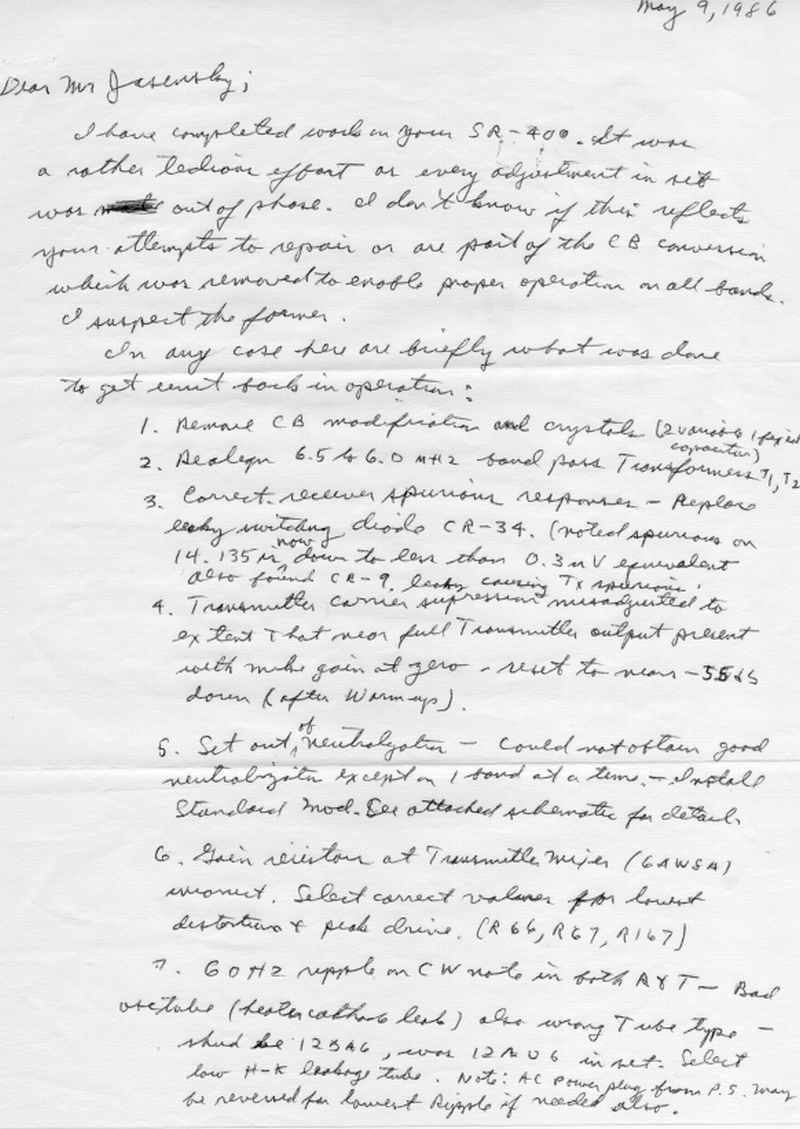

It had been "converted?" to be used as a CB xceiver! The owner Jack Jasensky KD9NA, had sent it to Bob to be fixed. There were a few improvements made by Bob and this radio is really fantastic. The Rx, especially, is nice. Quiet and very sensitive. I received all the notes Bob had made on the repair, as well as a two page letter, an invoice for the repairs, and a note from Jack KD9NA to Ron, the guy I bought it from. (Don't remember his last name or call) I have reproduced all this into a single file which follows this dialog.

Contributed by Chuck KA6UUP

Click here to enlarge image.

Click here to enlarge image.

Click here to enlarge image.

Click here to enlarge image.

Click here to enlarge image.

Click here to enlarge image.
